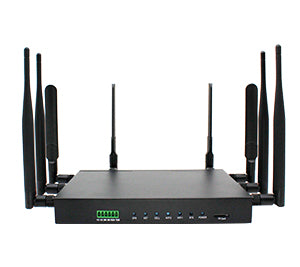

Wideshine 5G Industrial Router (I3500)

Model

I3500

CPU

MTK7621+MT7603EN+MT7613B

FLASH

128Mbit

RAM

DDR2 1Gbit

Wi-Fi Standard

Dual Band Wi-Fi, IEEE 802.11ac/b/g/n

               Data Rate

IEEE 802.11g: Max 54Mbps

IEEE 802.11n: Max. 300Mbps

IEEE 802.11ac: Max 900Mbps

Encryption

WEP / WPA / WPA2 / WPA3

RF Power

20±2dBm

Reception Sensitivity

<-72dBm@54Mbps

WAN

1 x 10/100M/1000M Ethernet Port, Auto MDI/MDIX, Built-in 1.5KV Electromagnetic Isolation Protection

LAN

4 x 10/100M/1000M Ethernet Port, Auto MDI/MDIX, Built-in 1.5KV Electromagnetic Isolation Protection

SIM Card

2 x Push-Push SIM card Slot

USB

1 x USB 3.0 Port

UART

1 x RS232 or RS485 Serial Communication

Power

1 x Standard DC Connector, Built-in Power Reverse Protection

Antenna

4 x 5G Antenna2 x 2.4GHz Wi-Fi Antenna2 x 5GHz Wi-Fi Antenna1 x GPS Antenna

LED Indicators

1 x SYS System Status Indicator4 x LAN Ethernet Status indicator1 x WAN Ethernet Status Indicator2 x WIFI Status Indicator1 x NET Internet Indicator1 x GPS Status Indicator

Reset

1 x Pin-hole Reset Button

Input Power

DC 12V/1.5A

Power Range

DC 9~30V

Power Consumption

<2A(12V)

Enclosure

Metal Enclosure, Industrial Protection Grade IP30. The enclosure and the system are safely isolated, and are widely used in automotive and specific industrial applications.

Dimensions

200mm x 141mm x 28mm

Weight

920g

Operating Temperature

-30°C to +70°C

Humidity

95% (non-condensing)
