River Sea Multifunctional Underwater Sonar Camera Water Scan Drowning Man Rescue Intelligent Robot
River Sea Multifunctional Underwater Sonar Camera Water Scan Drowning Man Rescue Intelligent Robot
Couldn't load pickup availability
Parameters:
- Product Name: Multifuctional Underwater Sonar
- Model: 361106
-
Storage of Waypoint: 5000
- Storage of Route: 200
- Power: 1000w
- Runtime: 4h
- Screen: 1200Nits, 1920*1080
- Video Visual Range: 0.15m-6m
- Stucture Scan: Downscan:90m, Sidescan: 180m
- Single package size: 64X48X27 cm
- Single gross weight: 8.0 kg
With water area scan, the multifunctional underwater sonar can be used to life detection and effectely improve water rescue operation.
|

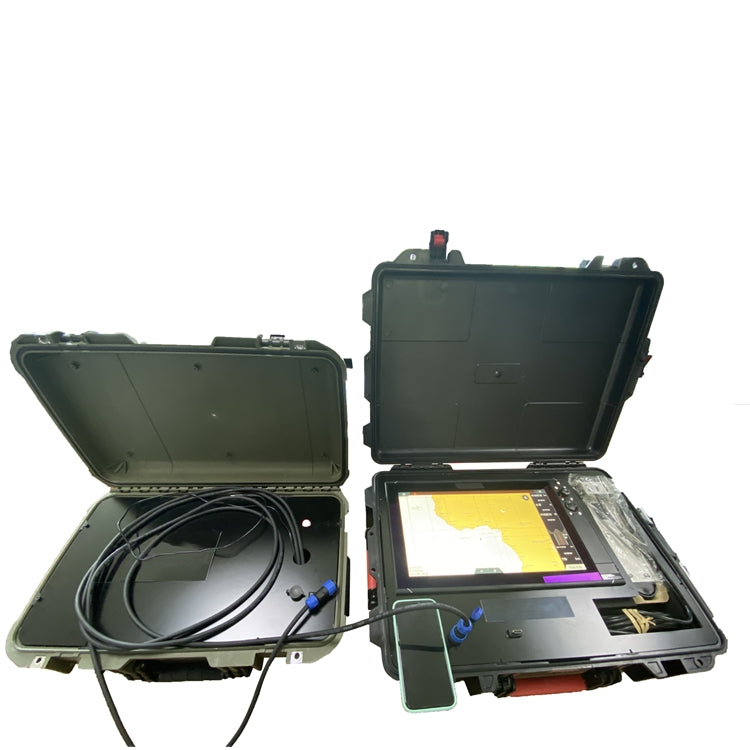

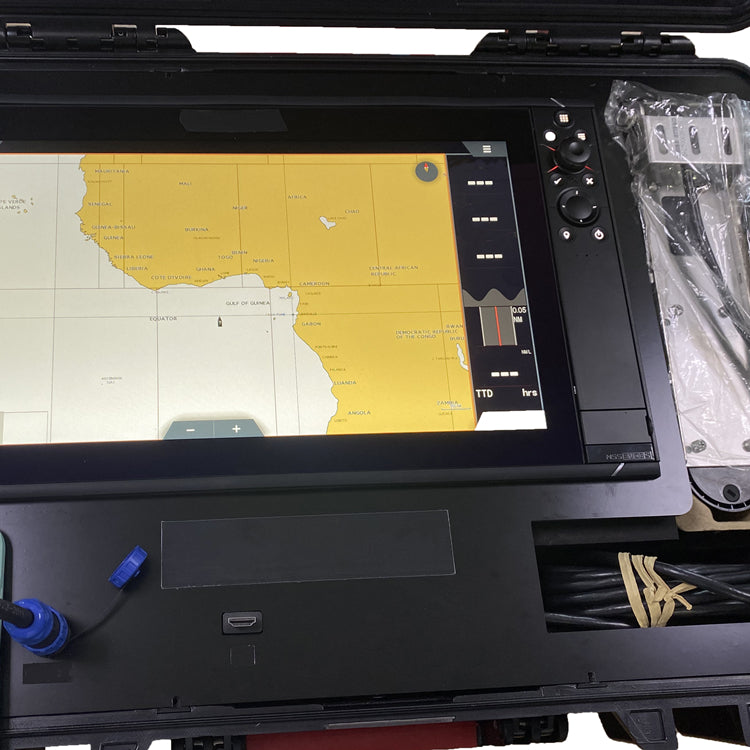

Control: double screen display |
| Screen: 21inch, 1200Nits, 1920*1080 |
| Multisplit screen, with downscan, sidescan, imaging and underwater 360° video |
| Downscan:90m, sidescan:180m |
| Visual angle: 80° up and down, 80° left and right |
| Sonar frequency: 50/83/200/455/800KHz, power:1000w |
| Installed dual-channel sonar and playback support |
| Host Configuration: Data output/input, with baud rate: 4800/19200/38400, 2 Ethernet interface, 1 NMEA2000data interface, video input, 2 micro SD card slot |

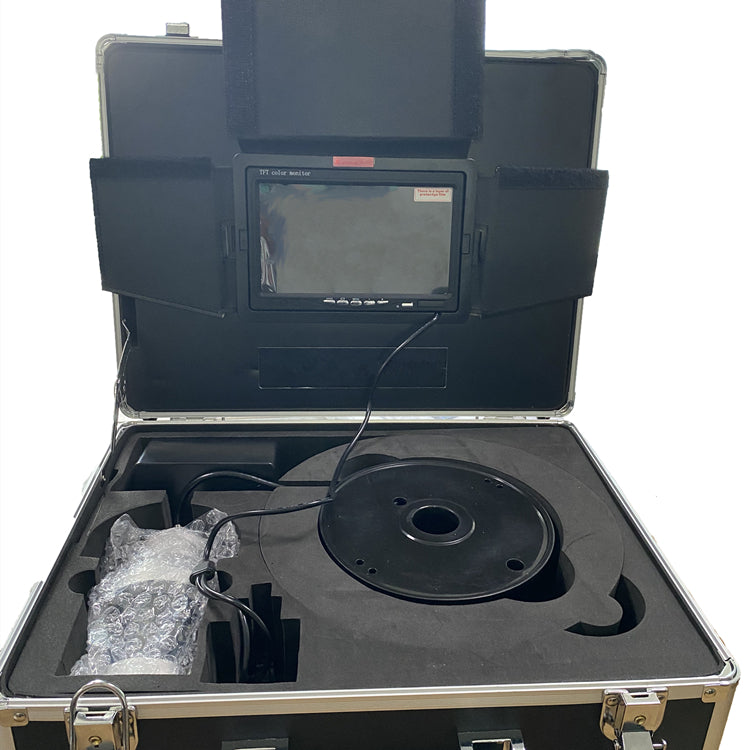

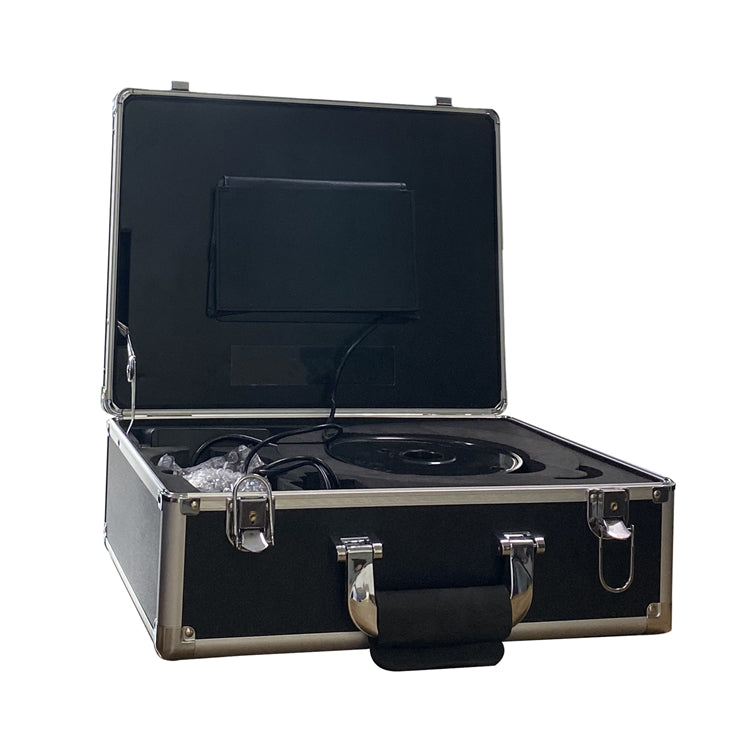

| Underwater video system: second screen with photo, video and other functions; light source:white light; cable diameter: 5mm, length:10m |
| Underwater video control: 360° rotation, visual range: 0.15-6m, detective depth:10m, runtime:4h |
| Storage of waypoint: 5000, storage of route: 200 |
| IP grade: IP68, working temperature: -15℃~55℃ |
| Sonar probe: 3MPa (300m depth, GB/T 32065.15-2019) |
| Carrying case: draw-bar box for host machine, convenient, water resisdent,dustproof and anti-drop |
