Widershine Rescue
UAV Gas Detector VOCS Sensor Navigation Detector Accessory for Analyzing Atmospheric Pollutants PM2.5
UAV Gas Detector VOCS Sensor Navigation Detector Accessory for Analyzing Atmospheric Pollutants PM2.5
Couldn't load pickup availability
Introduction

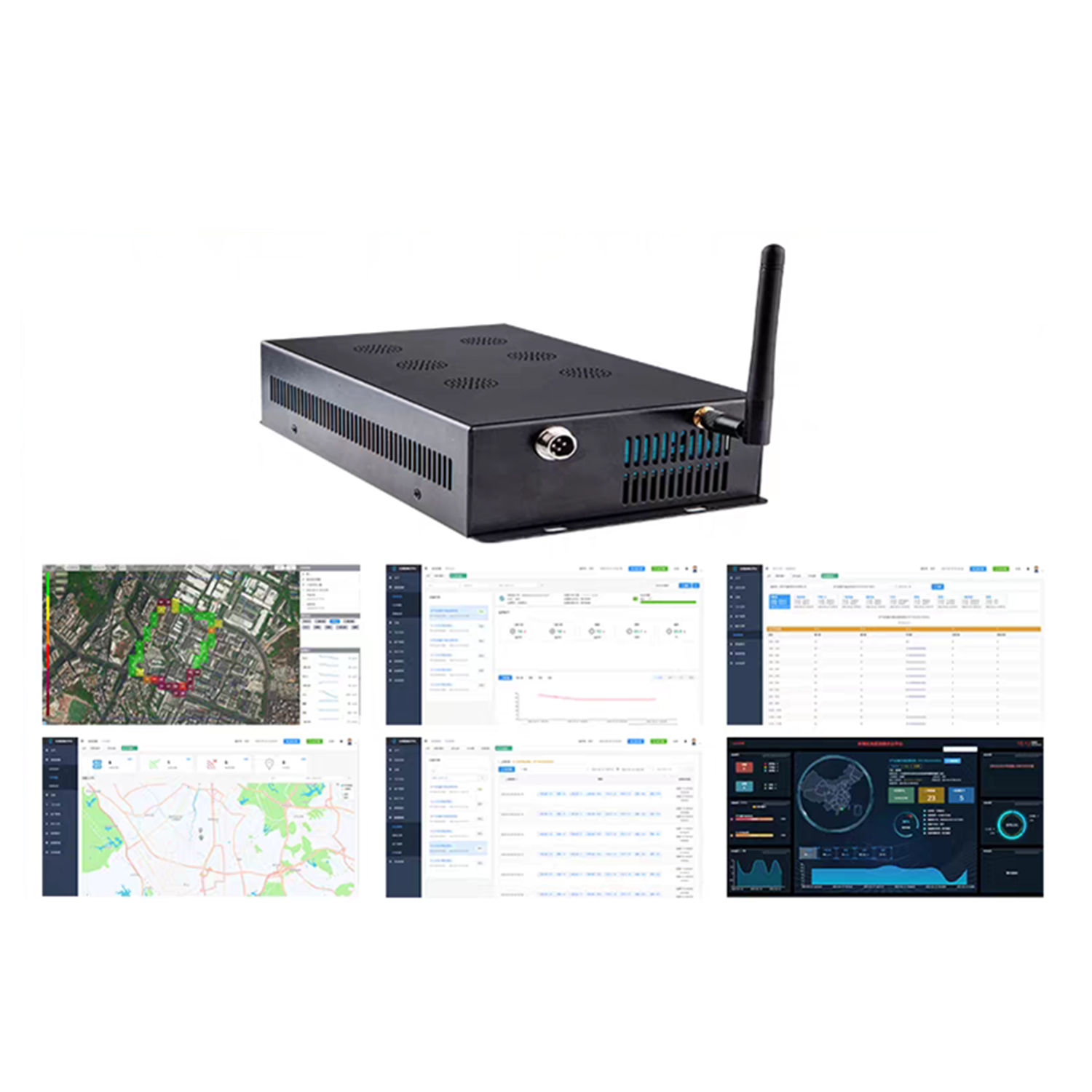

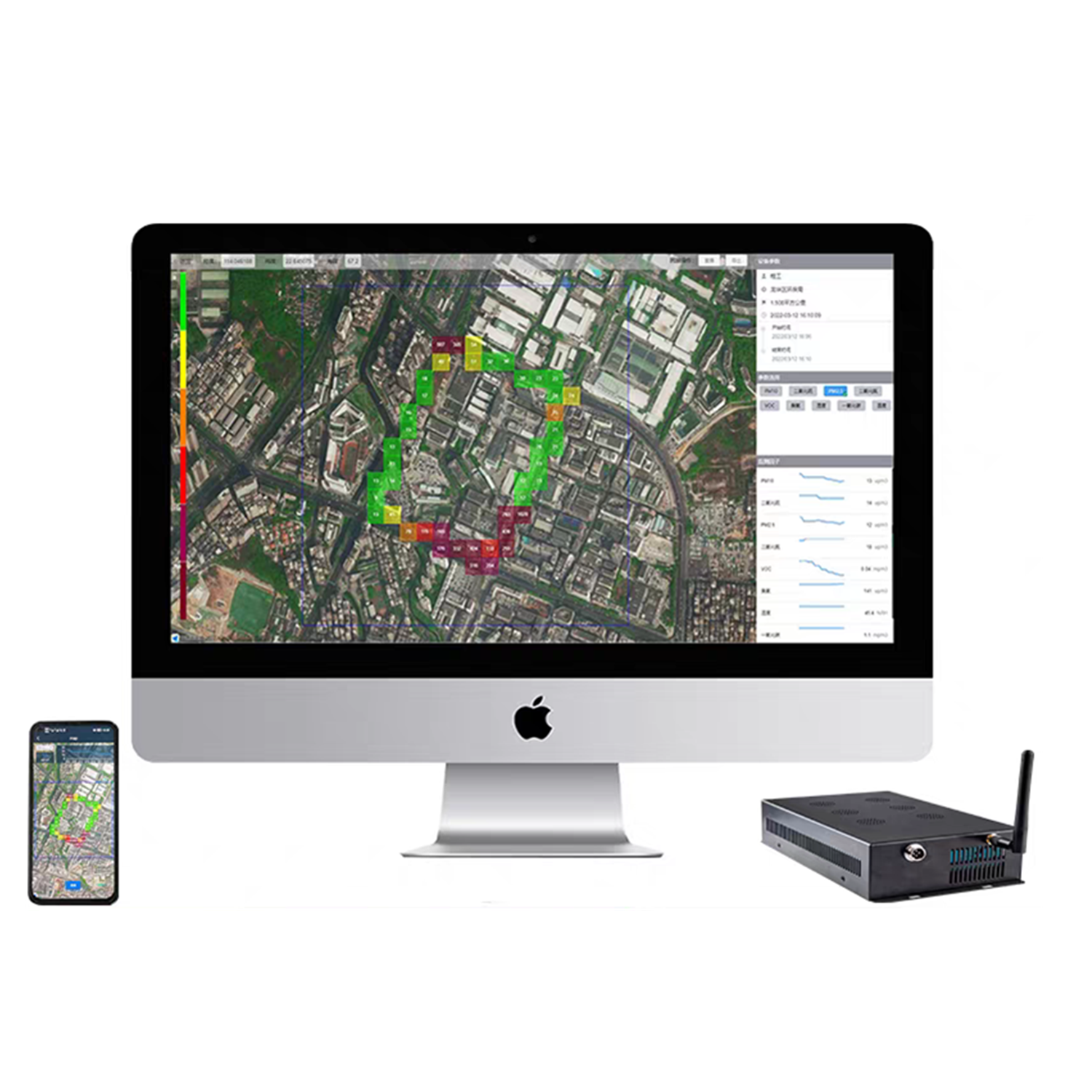

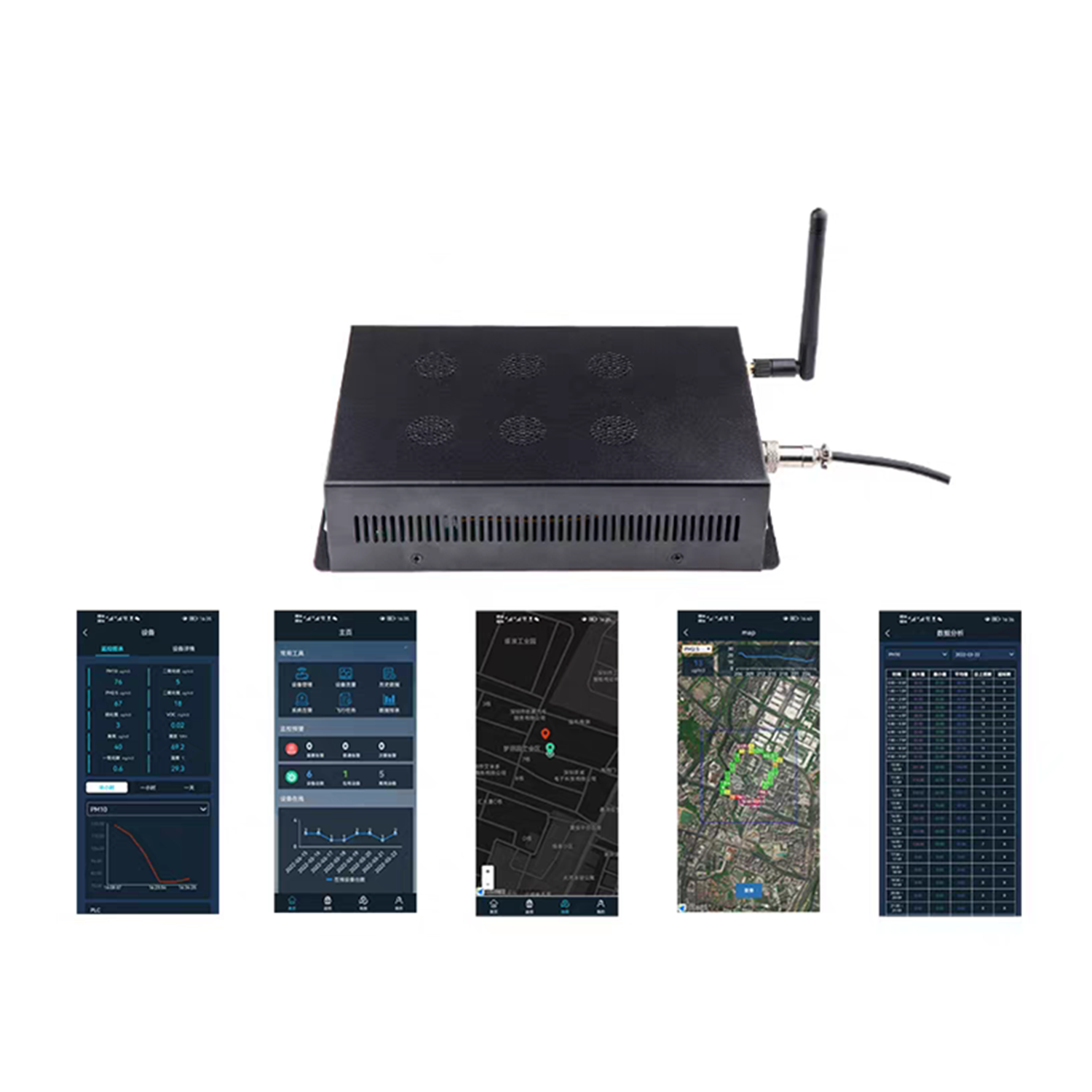

The unmanned aerial vehicle (UAV) environmental monitoring device is designed for environmental supervision and law enforcement, with high precision, small size, light weight, easy operation, and the ability to enter high-risk environments for work. It is convenient to be mounted on UAVs, unmanned vehicles, unmanned ships, robots, mobile law enforcement and other equipment, and can monitor real-time data of atmospheric pollutants in the environment. The device adopts wireless GPRS communication technology to transmit environmental monitoring data to the software platform, realizing online data query, trend curve analysis, data export, pollution source tracking, and can overcome factors such as unfavorable traffic and dangerous situations to provide accurate information for environmental protection decision-making. It can also greatly reduce the difficulty of environmental emergency workers' work, and at the same time, personal safety can be effectively guaranteed.
Specification
|
item
|
value
|
|
Model
|
WS-HU1
|
|
Detection
|
Diffuse/Pump suction (optional)
|
|
Detection parameters
|
Support customize (Refer to selection table)
|
|
Display
|
PC software/APP
|
|
Working current
|
about 100MA
|
|
Explosion proof grade
|
ExdⅡCT4 Gb
|
|
Protection grade
|
IP45
|
|
Working pressure
|
86-110Kpa
|
|
Response time
|
≤15S(T90)
|
|
Operation temperature
|
-20~+60℃
|
|
Weight
|
450g
|
|
Installation way
|
Mounted/Suspended/Wall mounted
|
|
Voltage
|
12-24VDC
|
|
Size
|
185×115×48mm
|
Features
|
Optional Parameters
|
Recommended Range
|
Detection Accuracy
|
Resolution
|
|
Pm1
|
0-1000ug/m³
|
±10% FS
|
1ug/m³
|
|
Pm2.5
|
0-1000ug/m³
|
±10% FS
|
1ug/m³
|
|
Pm10
|
0-1000ug/m³
|
±10% FS
|
1ug/m³
|
|
CO
|
0-1000ug/m³
|
±2% FS
|
0.1mg/m³
|
|
SO2
|
0-1000ug/m³
|
±2% FS
|
1ug/m³
|
|
NO2
|
0-1000ug/m³
|
±2% FS
|
1ug/m³
|
|
O3
|
0-1000ug/m³
|
±2% FS
|
1ug/m³
|
|
VOC
|
0-50mg/m³
|
±2% FS
|
0.01mg/m³
|
|
H2S
|
0-1000ug/m³
|
±2% FS
|
1ug/m³
|
|
Temperature
|
-40-60℃
|
±0.3℃ FS
|
0.1℃
|
|
Humidity
|
0-100%RH
|
±3%RH FS
|
0.1%RH
|
|
Atmospheric Pressure
|
10-1100hPa
|
±0.1% FS
|
0.1hPa
|

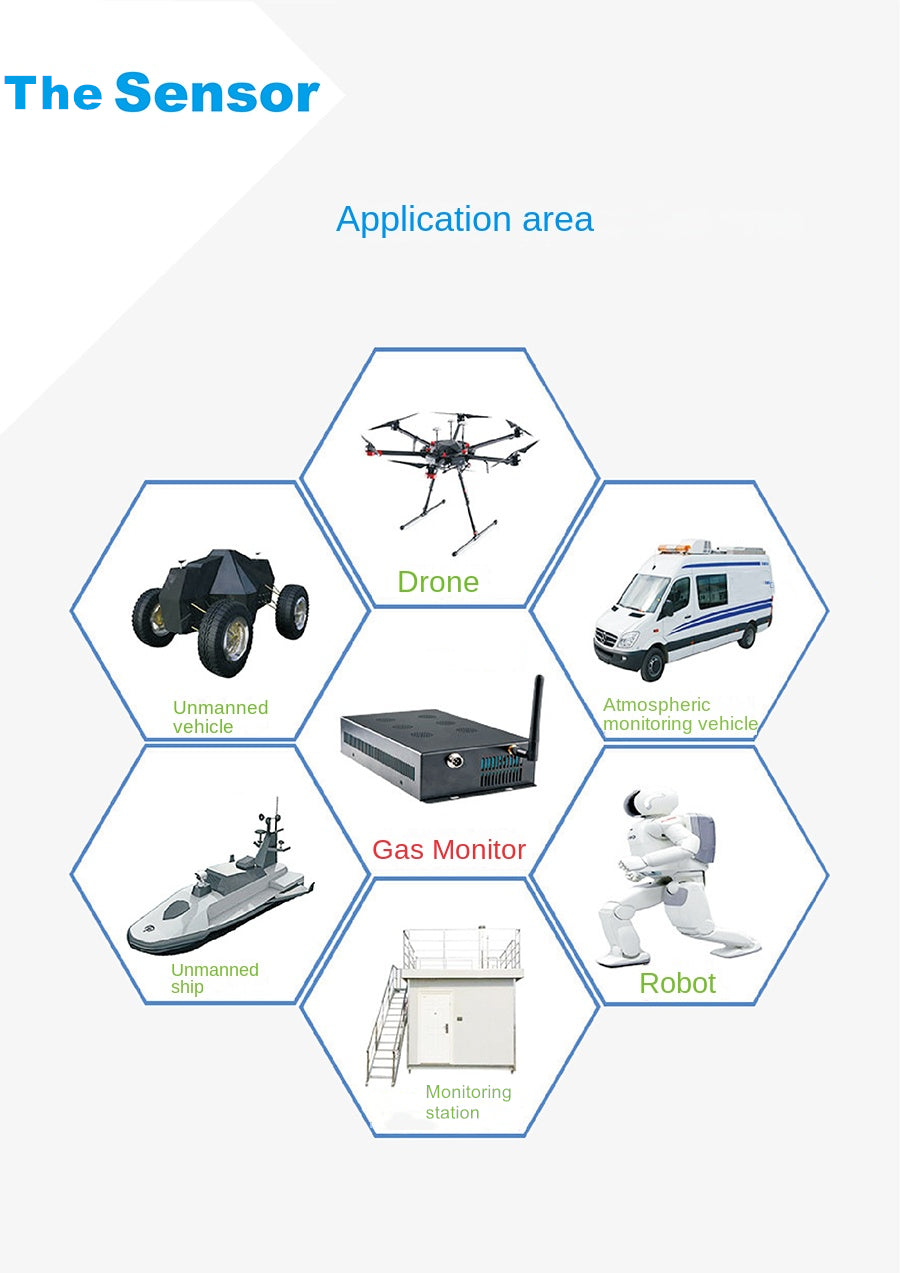

Application
Company Information:
Widershine Rescue Robot was founded in 2013, dedicated to becoming a leader in the field of intelligent rescue robot. We are a provider of rescue robots as well as various corresponding accessories. These products can be widely used in fields emergency rescue and public safety.
Our products feature long endurance, high stability, and ease of operation, and can provide customized solutions according to customer needs. Our team consists of experienced engineers, designers, and technical experts who are committed to providing customers with higher-quality products and services.
In addition to providing high-quality products and services, Widershine Rescue Robot also focuses on innovation and development. We will continue to invest in research and development and meet customer needs and market changes through continuous innovation. We adhere to the business philosophy of "innovation, quality, and service" to provide customers with high-quality products and services.
Our mission is to become a leader in the intelligent rescue robot industry, continuously promote technological innovation and product upgrades, and provide customers with more efficient, safer, and smarter solutions. We will continue to work hard to meet customer needs and create greater value.
