Product Details

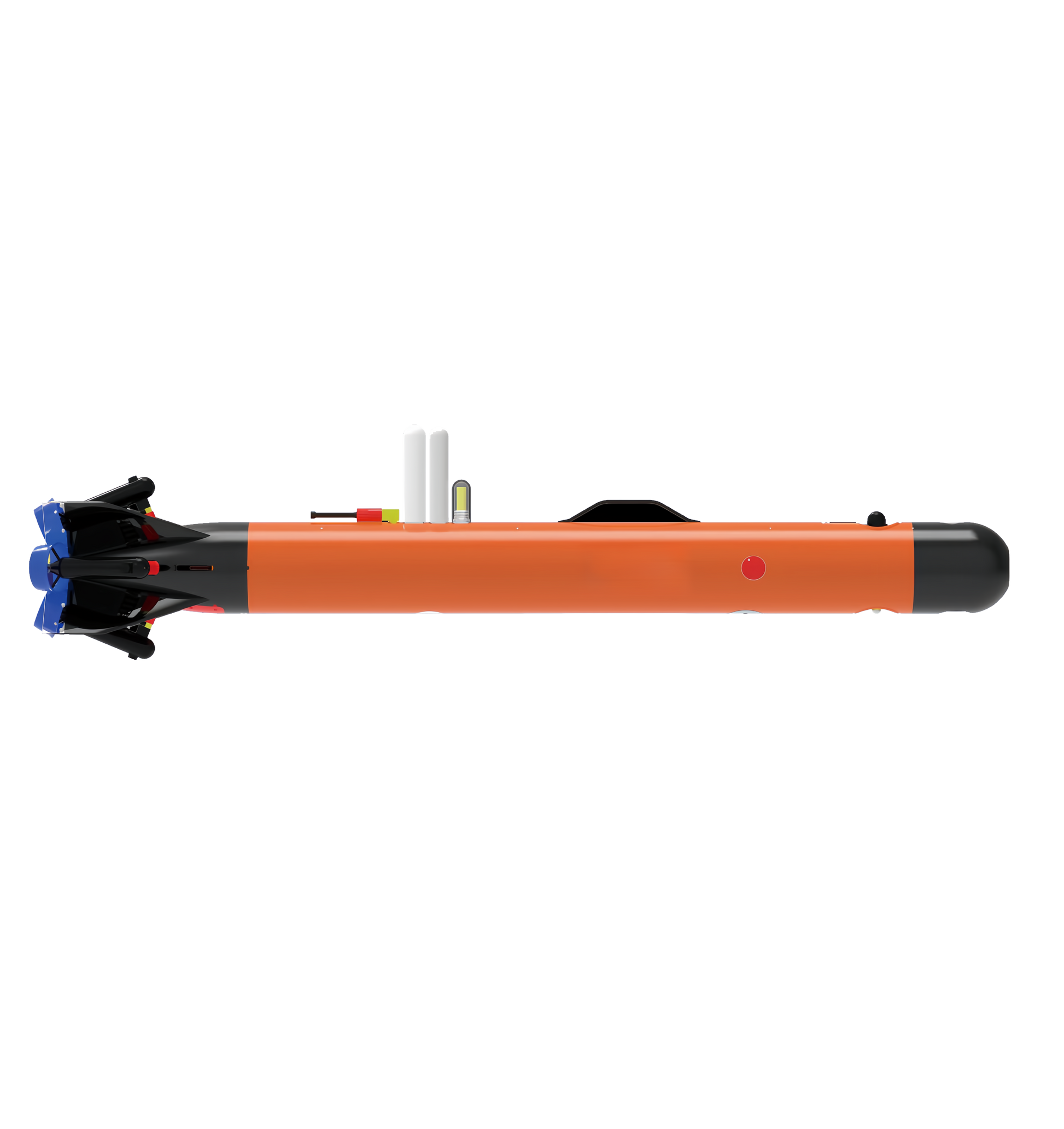

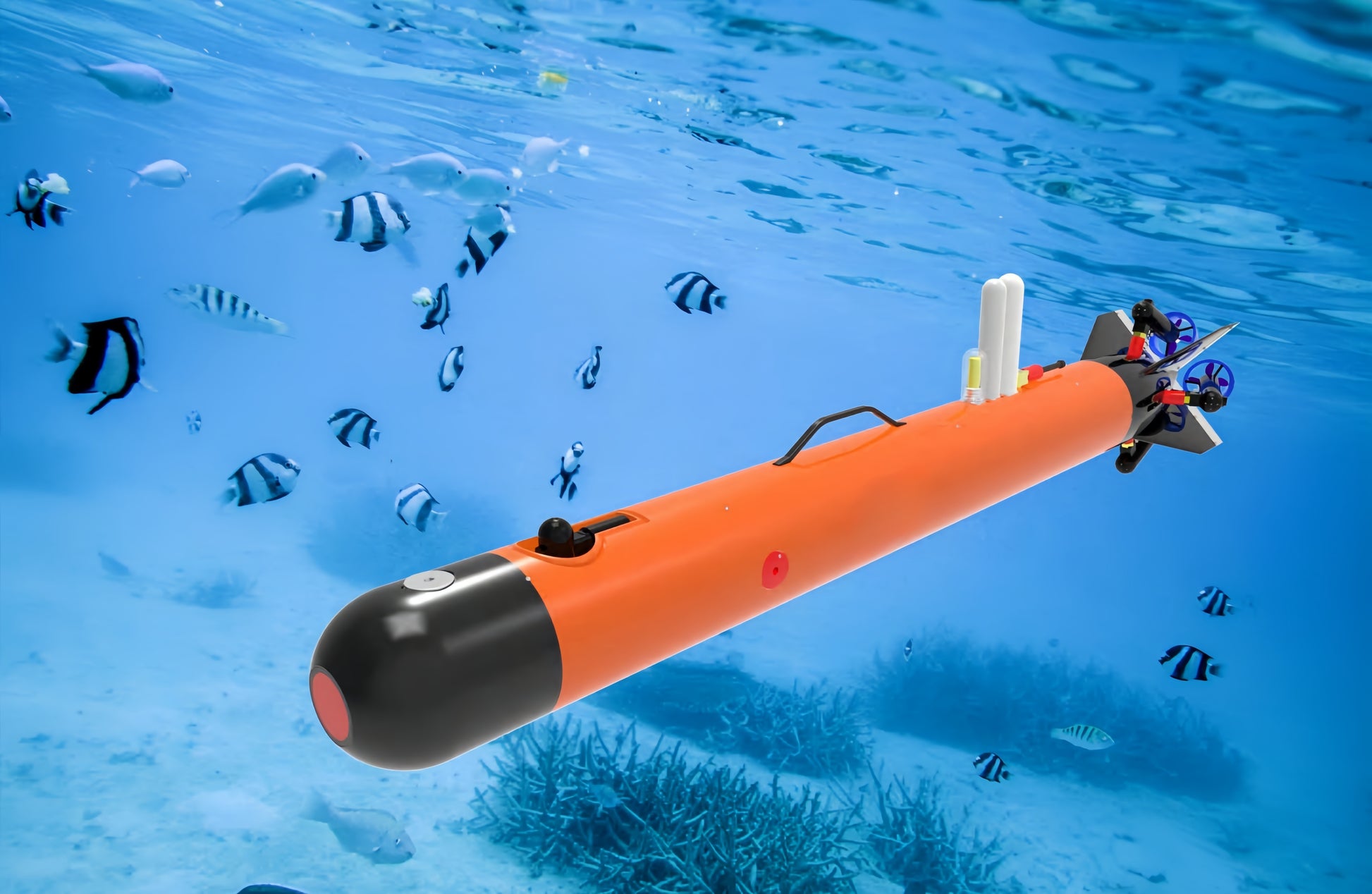

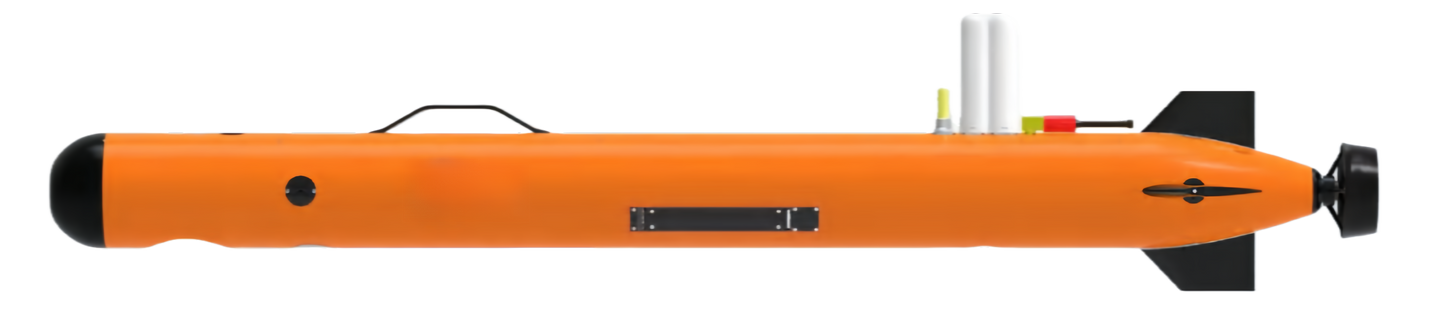

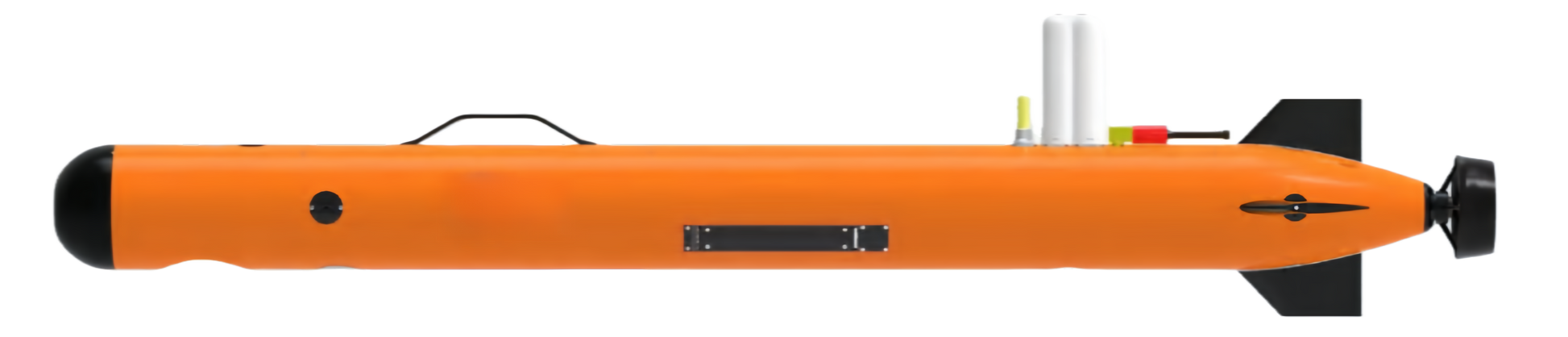

The ADX150 AUV is a micro autonomous underwater robot. It is small in size, light in weight, highly integrated in system, and fully functional. It can meet the needs of single-person use and offers multiple thruster layout options. It is highly flexible and cost-effective, suitable for various scenarios where water areas are restricted, costs are limited, and lifting equipment cannot be matched. It can meet the demands of teaching, scientific research, functional verification, etc.
Technical parameters
|
item |
value |
|
Dimensions |
Diameter 150mm, length 1.4-2.6m (depending on configuration) |
|
Mass |
21-41kg (depending on configuration) |
|
Maximum depth |
100m/200m |
|
Speed |
0-6kn (Higher speed can be customized) |
|
Battery |
0.75kWh (secondary lithium-ion battery, expandable to 3 battery modules) |
|
Battery Life |
6-7h@3kn (single battery module, in the case of traditional simple mapping task load) |
|
|
4-5h@3kn (single battery module, under complex operating loads) |
|
Communication methods |
Data transmission radio, WIFI, 4G, satellite, underwater acoustic (any method is optional) |
|
Navigation methods |
GNSS+ optical fiber inertial navigation, GNSS+ optical fiber inertial navigation +DVL (Underwater acoustic positioning and |
|
Navigation accuracy |
0.5 to 5%CEP (depending on the selected navigation device) |
|
Control accuracy |
Orientation ±1°, depth ±0.1m, height ±0.5m (for flat terrain) |
|
Basic functions |
Directional navigation, depth navigation, height navigation, preset trajectory navigation, surface remote control navigation, |
|
Expandable functions |
underwater remote control, sonar towing, vertical diving, horizontal lateral movement |
|
Optional functional payloads |
side-scan sonar, multi-beam sonar, camera, multi-parameter water quality meter, ADCP, towed optical fiber, CTD, CT, user-defined |
