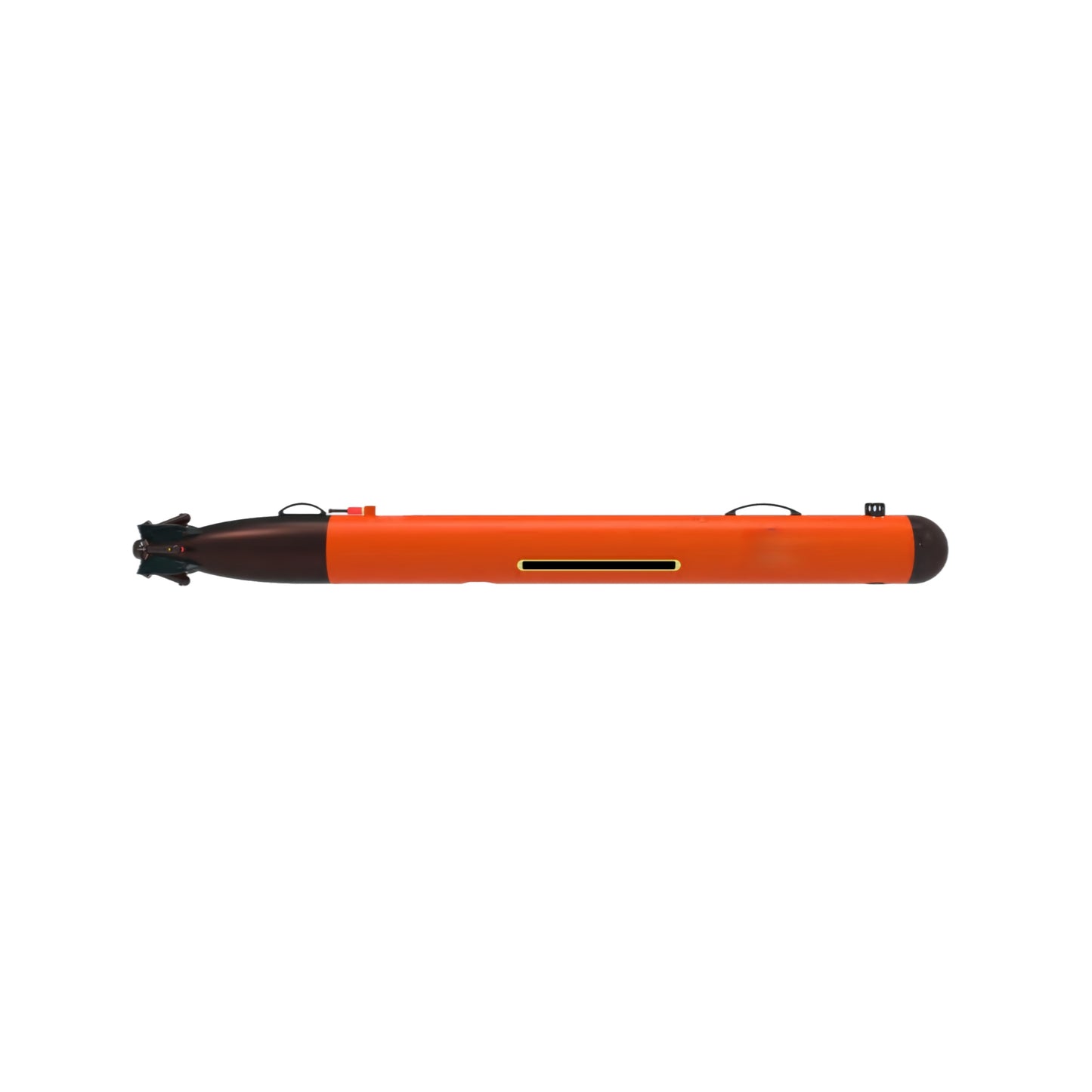

Widershine ADX200 AUV Deep-Diving Robot: 200m/500m/1000m Depth
Widershine ADX200 AUV Deep-Diving Robot: 200m/500m/1000m Depth
Couldn't load pickup availability
Product Details

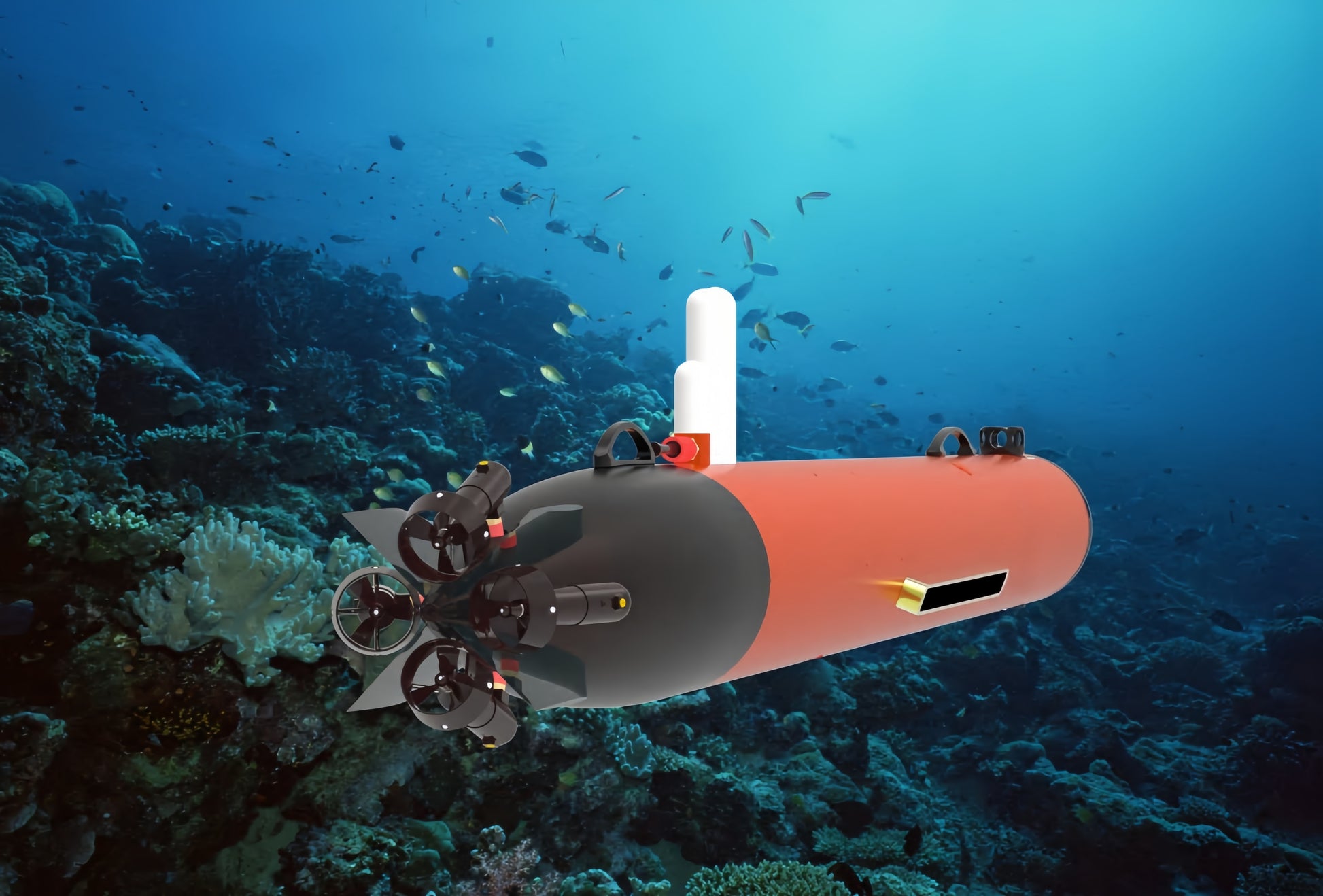

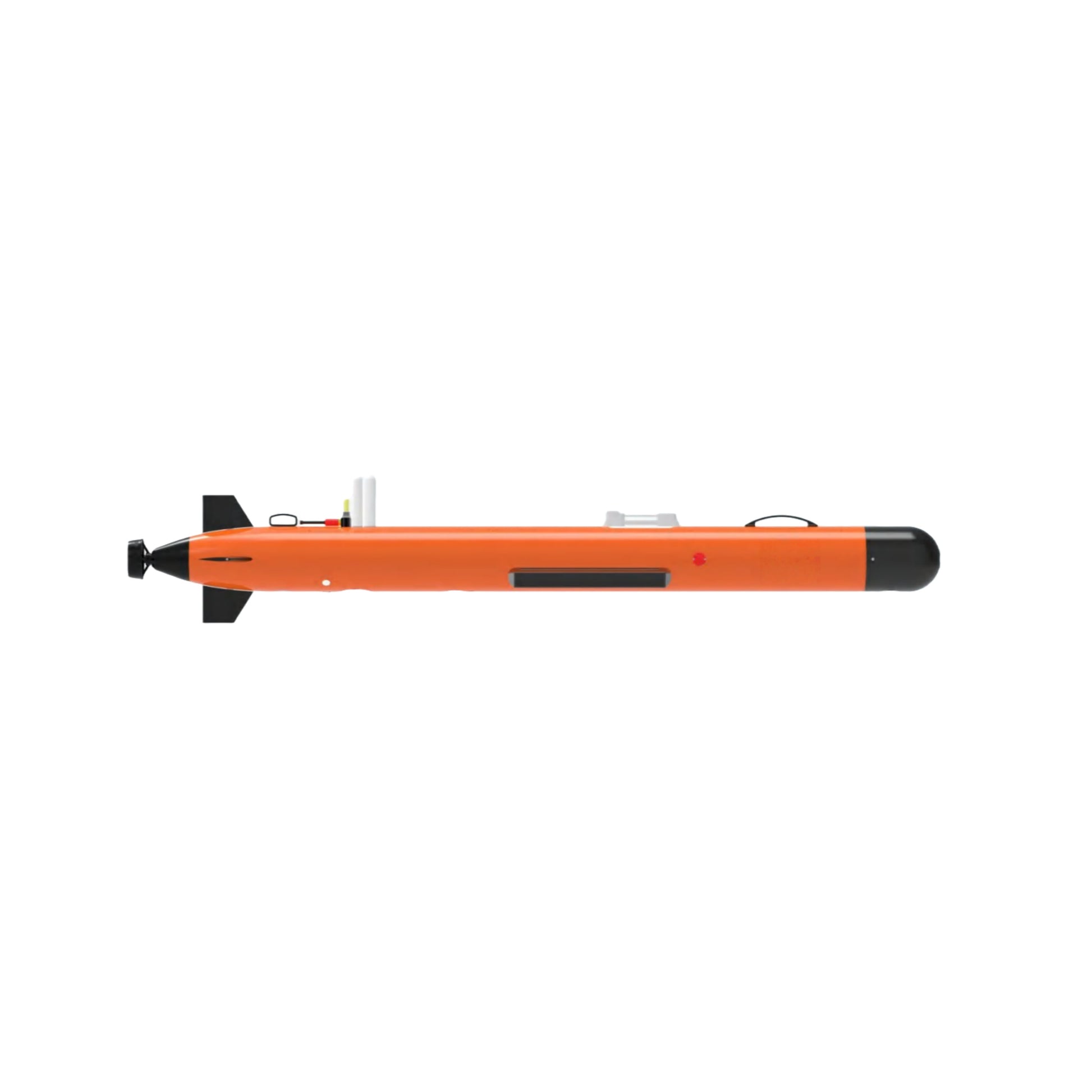

The ADX200 AUV is a portable autonomous underwater robot. By maximizing the optimization of current micro-sensors, it achieves stable performance and high reliability in a relatively small size. The ADX200 AUV can be deployed and recycled by two people in coordination. It is convenient to use and can be equipped with most of the common sensors on the market. It is suitable for scenarios with high requirements for data quality and strict cost control.
|
item |
value |
|
Dimensions |
Diameter 200mm, length 1.6-3.2m (depending on configuration) |
|
Mass |
48-100kg (depending on configuration) |
|
Maximum depth |
200m/500m/1000m |
|
Speed |
0-6kn (Higher speed can be customized) |
|
Battery |
1.5kWh (secondary lithium-ion battery, expandable to 2 battery modules) |
|
Battery Life |
7-8h@3kn (single battery module, in the case of traditional simple mapping task load) |
|
|
5-6h@3kn (single battery module, under complex operating loads) |
|
Communication methods |
Data transmission radio, WIFI, 4G, underwater acoustic (any method is optional) |
|
Navigation methods |
GNSS+ optical fiber inertial navigation, GNSS+ optical fiber inertial navigation +DVL (Underwater acoustic positioning and navigation equipment can be added) |
|
Navigation accuracy |
0.5-2%CEP (depending on the selected navigation device) |
|
Control accuracy |
Orientation ±0.5°, depth ±0.1m, height ±0.5m (for flat terrain) |
|
Basic functions |
Directional navigation, depth navigation, height navigation, preset trajectory navigation, surface remote control navigation, video collection, wireless communication, water depth measurement |
|
Expandable functions |
underwater remote control, sonar towing, vertical diving, horizontal lateral movement |
|
Optional functional payloads |
depth sounding side-scan sonar, multi-beam sonar, camera, multi-parameter water quality meter, ADCP, towed optical fiber, buoyancy adjustment, CTD, CT, user-defined sensors, etc. (1-4 can be configured) |
