Widershine Micro Underwater Robot 70kg ROV for 300m Depth
Widershine Micro Underwater Robot 70kg ROV for 300m Depth
Couldn't load pickup availability
Product Details

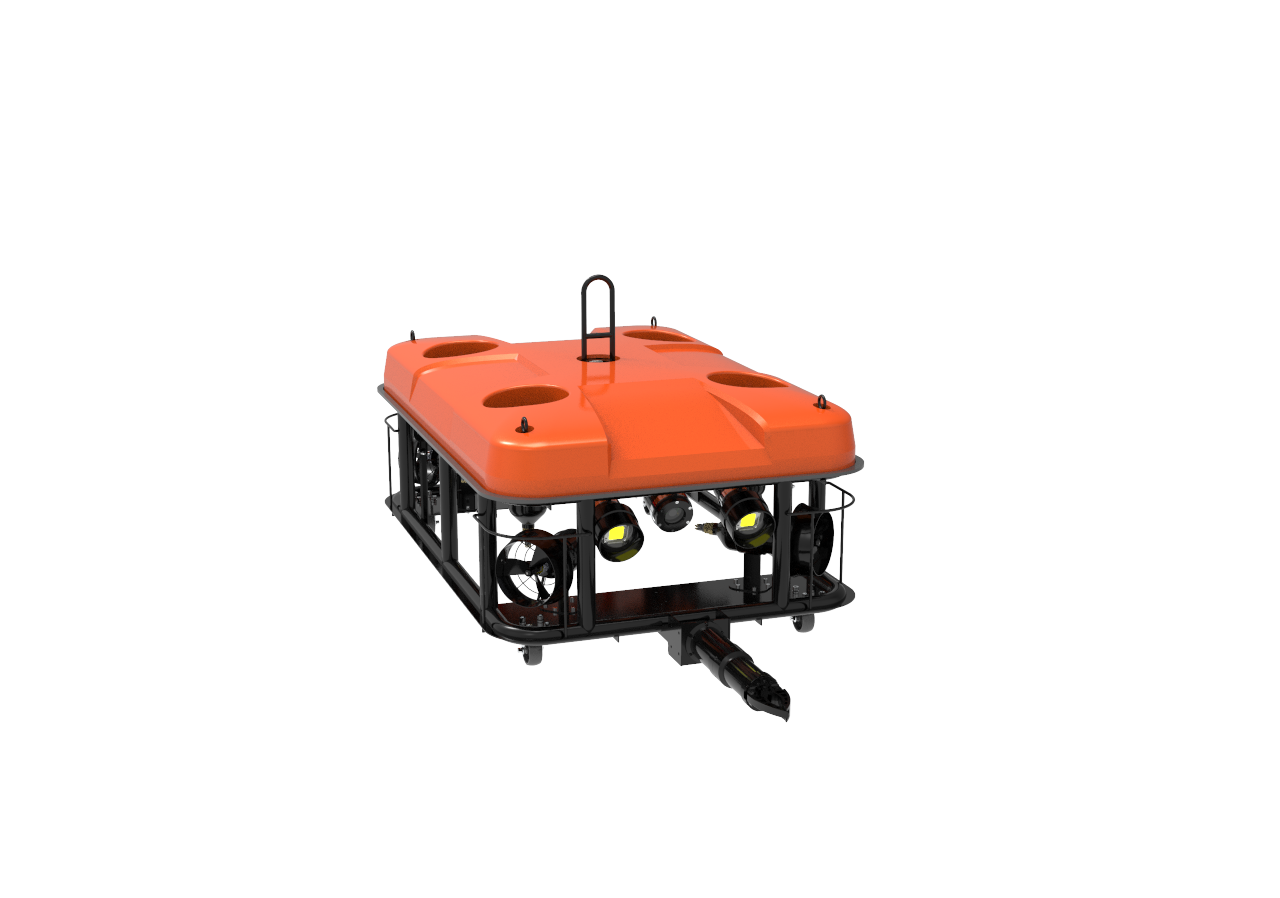

The 3611G70 ROV is a 70kG-class medium-sized underwater robot for operations, equipped with eight thrusters. It integrates observation and light operation functions and is widely used in various fields such as underwater rescue, underwater search, and hydropower. It adopts a modular structure design, providing great convenience for functional expansion. Redundant control system design enhances the stability and reliability of equipment operation. It is equipped with an intelligent control algorithm that can precisely achieve functions such as automatic orientation, depth determination and height determination, greatly enhancing the efficiency and accuracy of operations.
Technical parameters
|
item |
value |
|
Power supply voltage |
380VAC |
|
Power supply capacity |
5kW |
|
Equipment dimensions |
1000(L)x660(W)x580(H)(mm) |
|
Equipment weight |
70kg (in air) |
|
Usage depth |
0-300m |
|
Thruster |
8x12kgf |
|
Video recording |
3x1080P |
|
Flow resistance capacity |
3 sections |
|
Automatic function
|
Standard configuration: Automatic depth determination, automatic orientation, and automatic height determination |
|
Optional: Path tracking, dynamic positioning, target recognition |
|
|
Functional payloads |
Forward-looking sonar, ultra-short baseline, pan-tilt, manipulator, etc |
